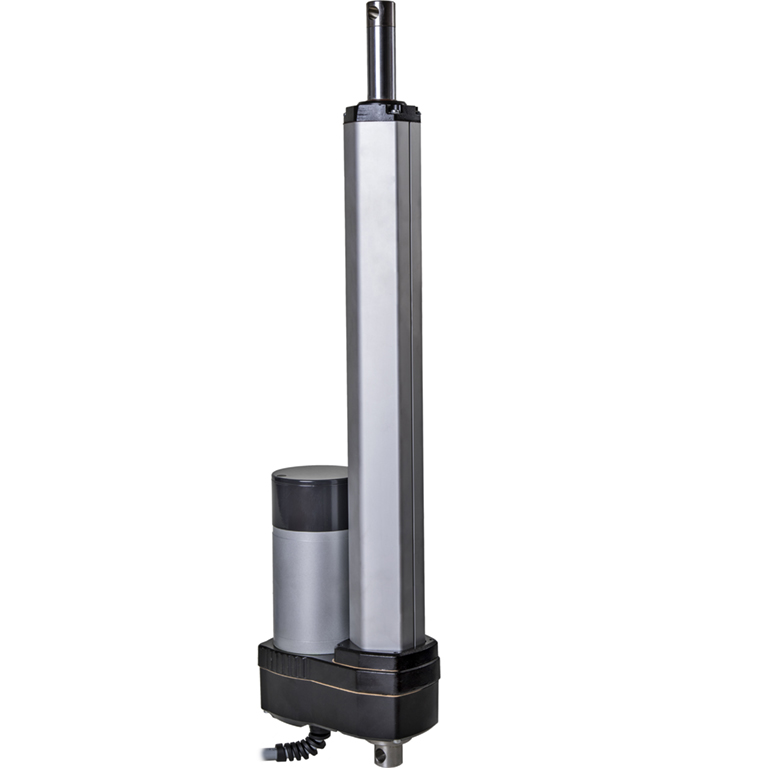

The CMLA linear actuator has been developed especially for demanding industrial applications and offers maximum performance at minimum size.  Its compact construction is made for a load range of 500 kg (1,100 lb) to 1,250 kg (2,750 lb).  An economical and small size solution for fulfilment lines, conveyors, metal processing equipment, packing packaging and filling equipment etc.

Features and Benefits:

  • 4 sizes with lifting capacities of 5 kN to 12.5 kN
  • Self-locking trapezoidal machine screw
  • Optional ball screw
  • Standard stroke lengths from 150 mm (6 in) to 1000 mm (40 in)
  • Trapezoidal screw lifting speed up to 84 mm/s (3.3 in/s)
  • Ball screw lifting speed up to 126 mm/s (5.0 in/s)
  • Plug & Play through complete pre-wiring
  • Integrated limit switches
  • Integrated motor brake
  • Exact positioning and repeat accuracy
  • Constant lifting capacity across the entire stroke


Download CMLA product catalogue (PDF)
