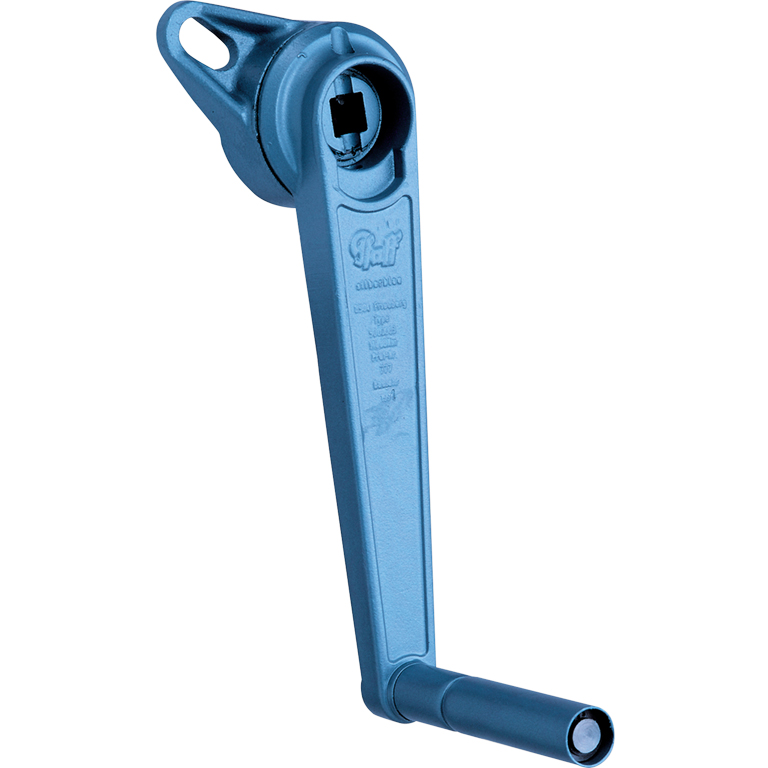

Spring loaded safety crank SIFEKU

The bi-directional self-braking crank is the safety upgrade to the traditional pawl-and-ratchet of yesteryear.  The safety benefits are two-fold; to the load it is cranking and especially to the operator whose hands and other body parts are at risk.

The Sifeku crank is widely used for:

• Cow hoof trimming chutes and crushes
• Conveyors and loading decks
• Manually gear operated jacks
• Manually operated winches

Features

• Silent operation without the need for a pawl or secondary latching
• Kick-back proof
• Maintenance free
• Totally enclosed
• Weather and temperature resistant
• Braking effect in both directions of rotation
• The load is held securely in any position in either rotation direction
• Approved by TÜV as an independent safety crank
• With folding handle
• Arm length 250-mm
• Square drive 17-mm standard
• Maximum braking torque 60-Nm / 44.25-ft-lb

Available in a two-piece option with removable tamper-proof crank handle
